This is the All New #BeastModeMCX Conversion kit for ReveD RDX

It is the result of the last 2 years development took place on the Yokomo and RDX Kits we have made. Combines between Flex and Anti Flex, Introduced the ZERO Backlash BM steering system for MC1 and RDX along with HCG Battery positions, New Motor Mount for MC1 and New Servo Holder for more accurate servo alignment.

RDX Owners can enjoy using this new #BeastModeMCX kit too.

Some functions:

• BM Direct Slide in Battery feature (Optional as additional Purchase)
• BM Steering System with Servo Holder (Optional as additional Purchase)
• Front Bulk Head Cover with BeastMode Logo
• Cabling Canal for ESC Cables on the Lower Plate
• Lower Plate will allow mounting Yokomo and OD front bumpers, Yokomo Yd2, SD1, RD1 & RD2 front and rear ends (front bulk head, rear gear set, toe blocks, diffuser)
• Lower Plate will allow for ease of access to adjusting screws for HCG Servo and Batter Positions
• Kit comes with the necessary Screw set, Aluminum Threaded posts and 120mm stainless steel turnbuckle and you can also use the screws from your current RDX kit*

Note:

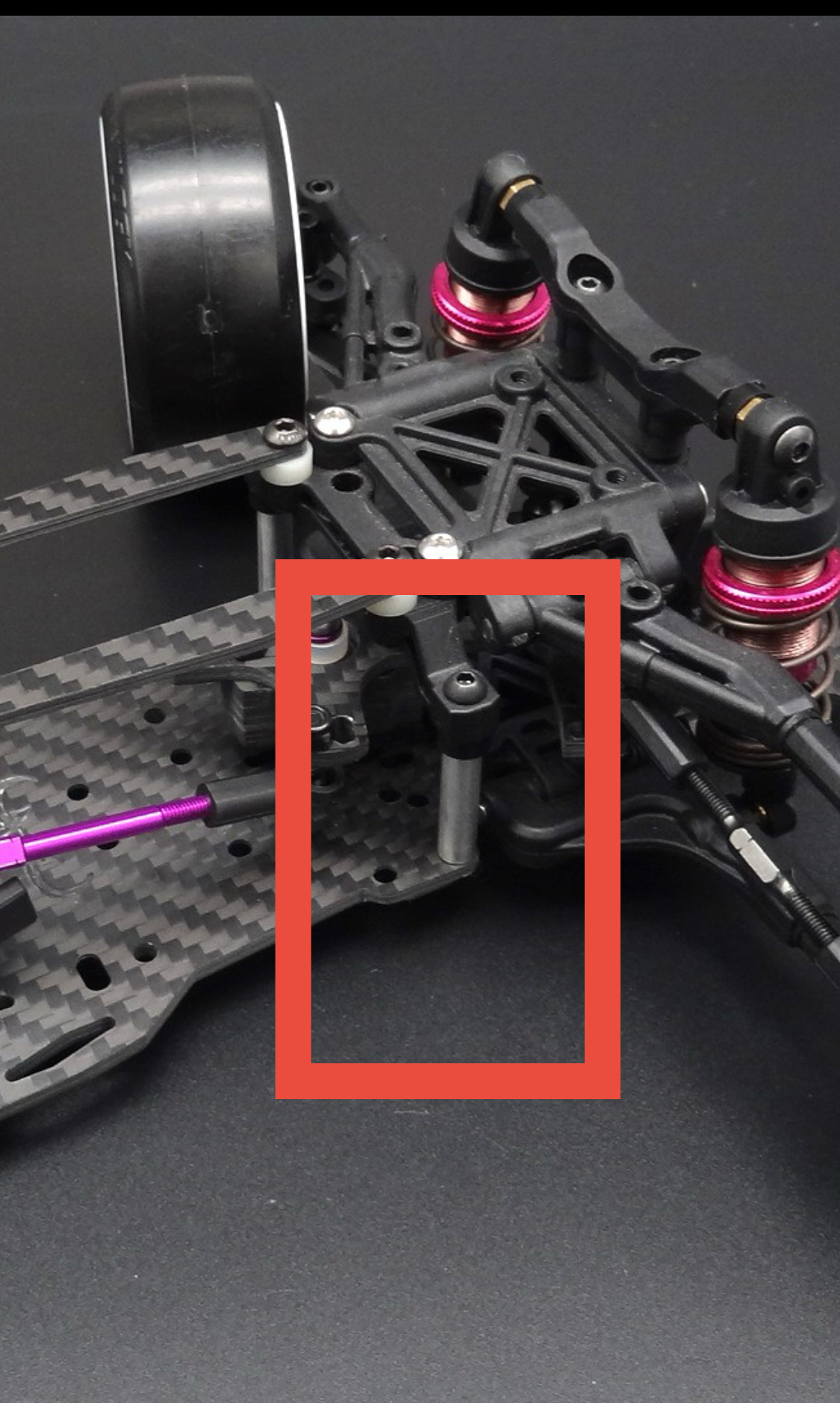

For the Steering System to be used on RDX Front, user need to remove the stock RDX steering and steering assembly section as described in this below image. Use m3x20mm Threaded post with spacers for more stability and front stiffness

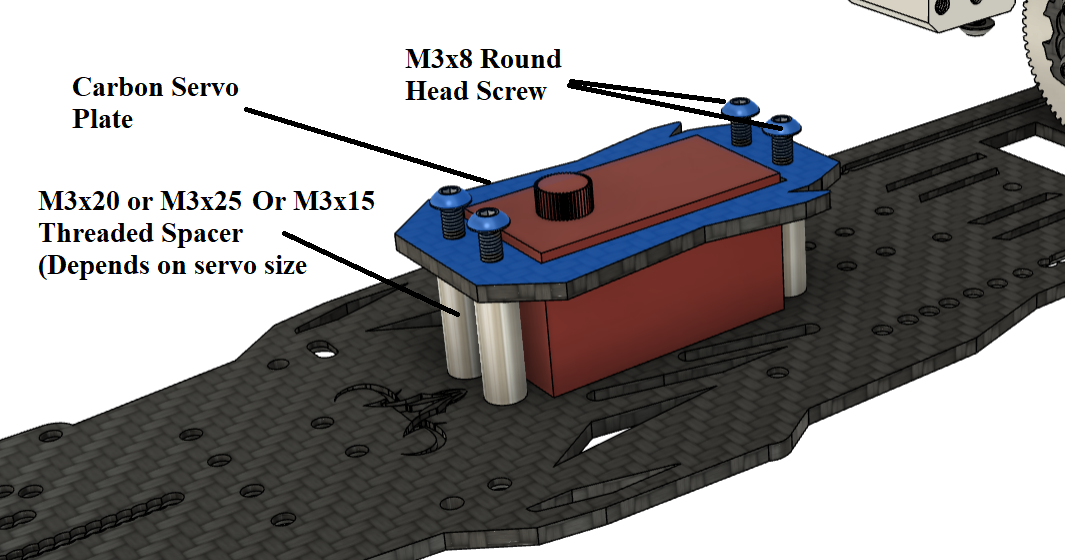

For Optional Servo Holder, please mount as follows:

Some screws may require to be purchased separately but usually the screw set will be come all with the package. however, these screw set may be required to be purchased separately based on available stock: 2x M3x14 Round Head Screw & 4x M3x8 Flat Head Screw
