Here it is, the #BeastMode KODACHI Edition

This Beast will work on the: Yokomo YD, RD, SD Series & ReveD RDX, MC1 Series.

This bad boy is hungry to perform at its best at any time. Its dynamic weight distribution, drivability & center of gravity setup options will make this conversion kit keen to competitively perform. if you also want to casually drift this beast on a track, we guarantee you a very aspiring experience.

With the newly designed carbon and aluminum open gear box setup and motor mount, it will allow you to setup several gearing ratios.

The Aluminum motor mount will allow you to run several spur gear, idler options too which will be capable to go with very high FDR configuration if required.

Using the new designed lower plate, this allows several battery mounts including HCG setup & multi servo positions.

Rear Suspension Tower is specifically designed to meet the gear box and motor mount position. Having this new design with variety of options for suspension setup and rear roll.

*Standard Steering for Yokomo and RDX can be used

The kit includes:

Idler Gear will require 2x 5*10*4 ball bearing - does not come with kit.

Optional Steering System will require 2x 5*10*4 ball bearing - does not come with kit

NOT INCLUDED with the Kit.:
Kit will require a ball diff or gear diff. Kit is tested using MST ball diff gears and gear diffs from MST FXX and MST MRX series. You can use other brands as long as it maintain same measurements and distance.

NOT INCLUDED with the Kit: Kit will require a Spur Gear Holder. And you can use the below optional Spur gear Holders:

YD2 spur gear holder with Pin

OR MST FSX Spur Gear Holder Part number 21048.

Note:

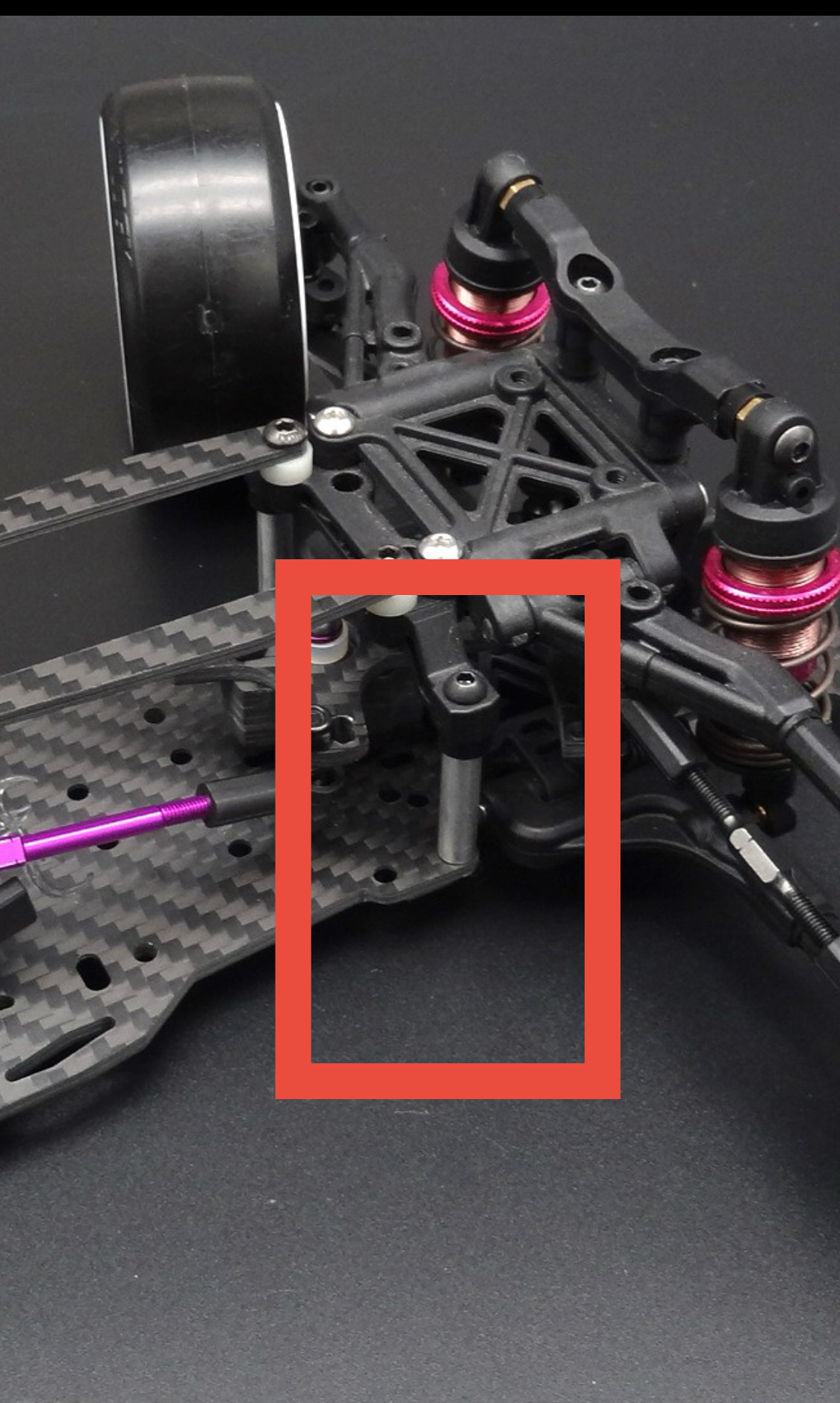

For the Steering System to be used on RDX Front, user need to remove the stock RDX steering and steering assembly section as described in this below image. Use m3x20mm Threaded post with spacers for more stability and front stiffness

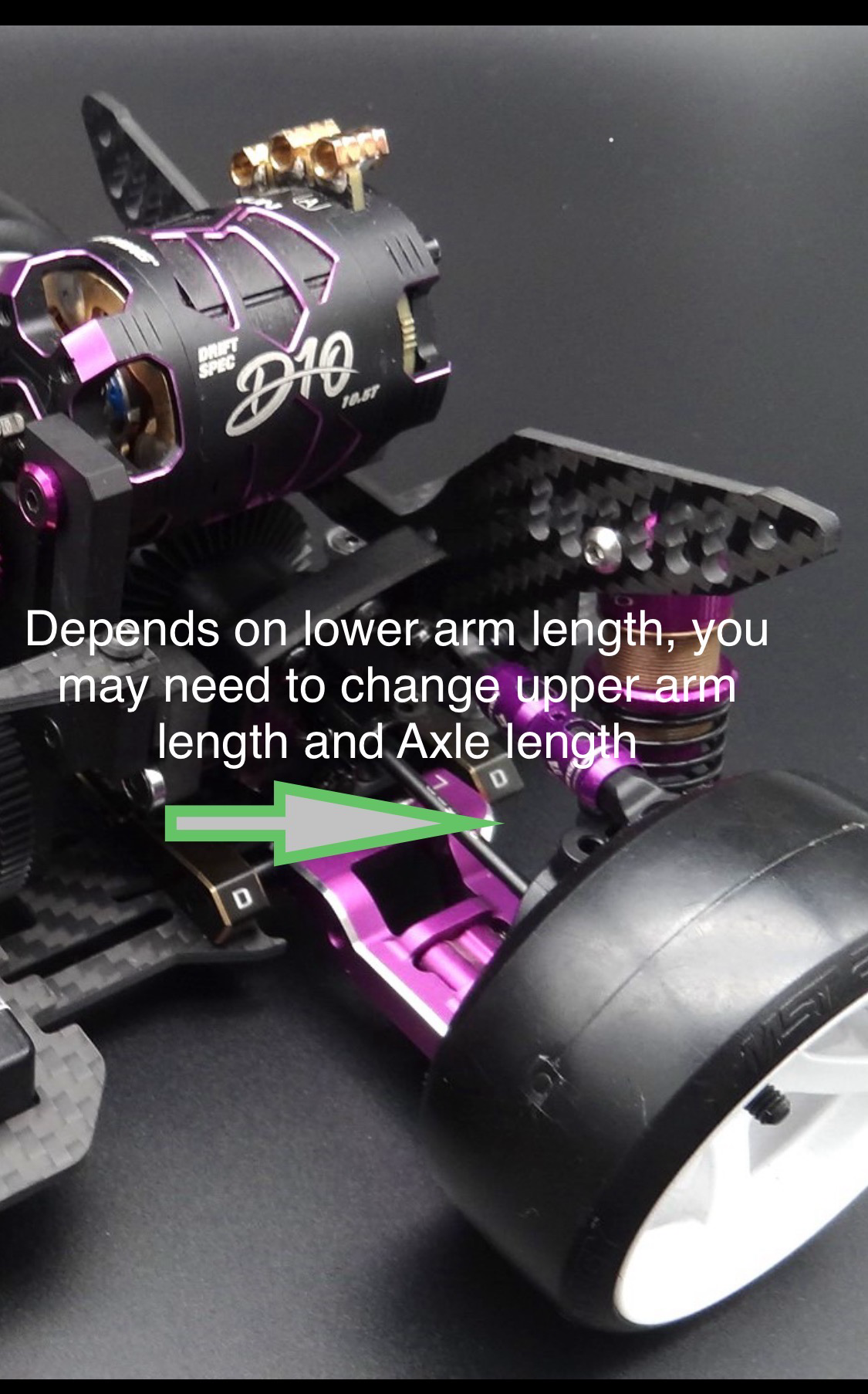

Another Note: Due to the change of the Gear Case Width; User may need to change Rear Upper Arm Length and Rear Axle Length too

Spur gear, Pinion gear, diff gear, bevel gear are not includedss in kit
